PicoRaptor
Ironwood Electronics introducing its first, of many, production Test Contactors into the Automated Test Environment, also known as ATE.

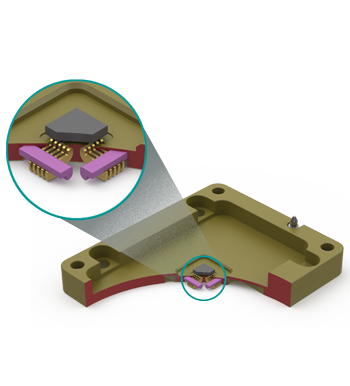

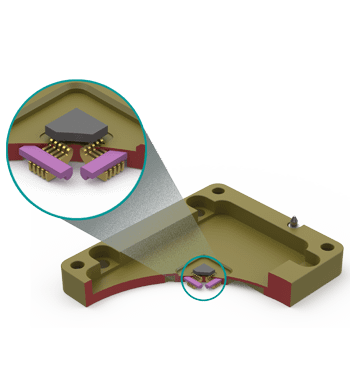

The PicoRaptor contact is a rigid pin that uses a single elastomer for ease of rebuild that is a high-performance contact for high frequency and high insertion count. It’s available in 1mm and 2mm length with pitch down to 0.30mm pitch. The single P elastomer provides firm contact to the load board and to the tip of the contact while providing a contact wipe that keeps Cres stable by keeping solder migration to a minimum off the contact tips with a proprietary Advance Contact finish (ACF) and prolongs load board life.
| Mechanical Specifications | PicoRaptor-1 | PicoRaptor-2 |
| Contact Pin Uncompressed Height(mm) | 0.95 | 1.6 |
| Contact Compliance(mm) | 0.2 | 0.2 |
| Contact Tip Coplanarity(mm) | ±0.05* | ±0.05 |
| Gram Force per Contact(g) | 30±10 | *20 ~ 40g |
| Wipe Length(mm) | 0.09 ~ 0.12 | *0.1 |
| Number of Insertion – Laminated Housing | ≥6M | ≥6M |
| Number of Insertion – Pin (Matte Tin.) Number of Insertion – Pin (NiPd) |
200K ~ 300K* | 300K ~ 500K* |
| Number of Insertion – Elastomer | ~200K | *300K ~ 400K |
| Operating Temperature | -45 ~ 155°C | -45 ~ 155°C |
| Socket Frame | Torlon 5030 or Equivalent |
Torlon 5030 or Equivalent |
| Contact Cartridge | Cirlex® Polyimide | Cirlex® Polyimide |
| Pin Material | BeCu – NiAu | BeCu – NiAu |
